【Product basic parameter introduction (can be customized according to your configuration requirements, please contact us for details)】

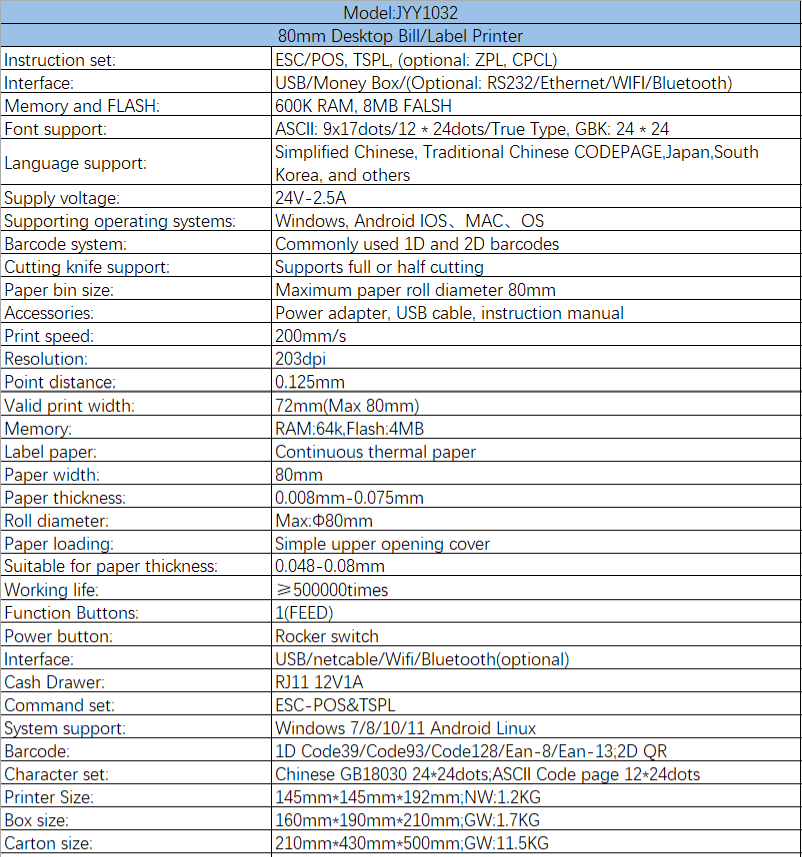

*Product Model:JYY1032

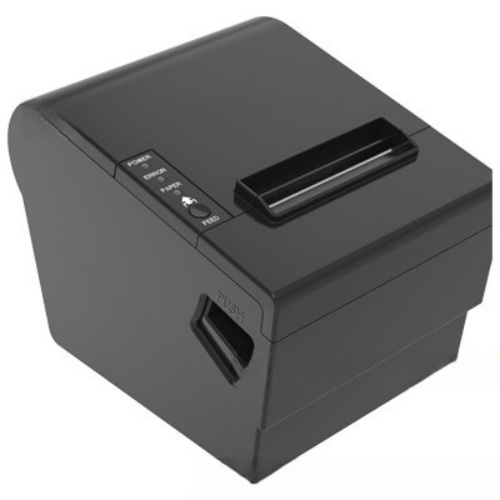

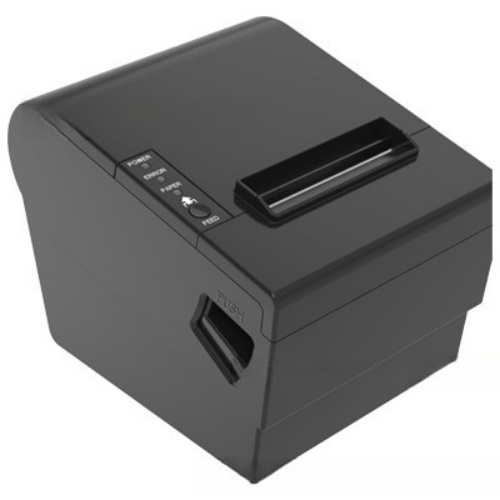

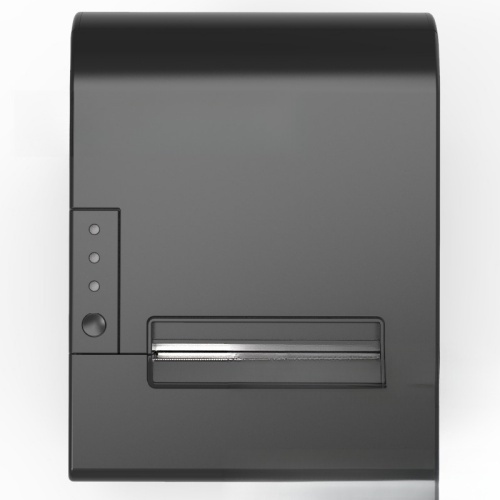

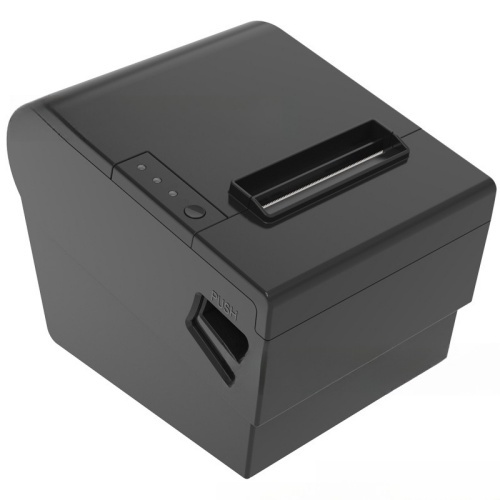

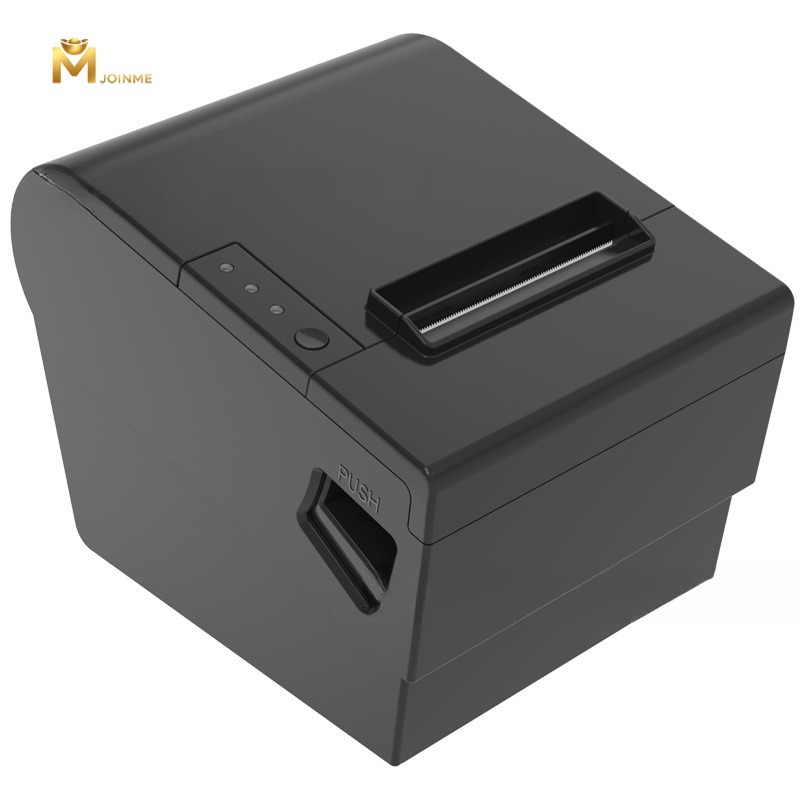

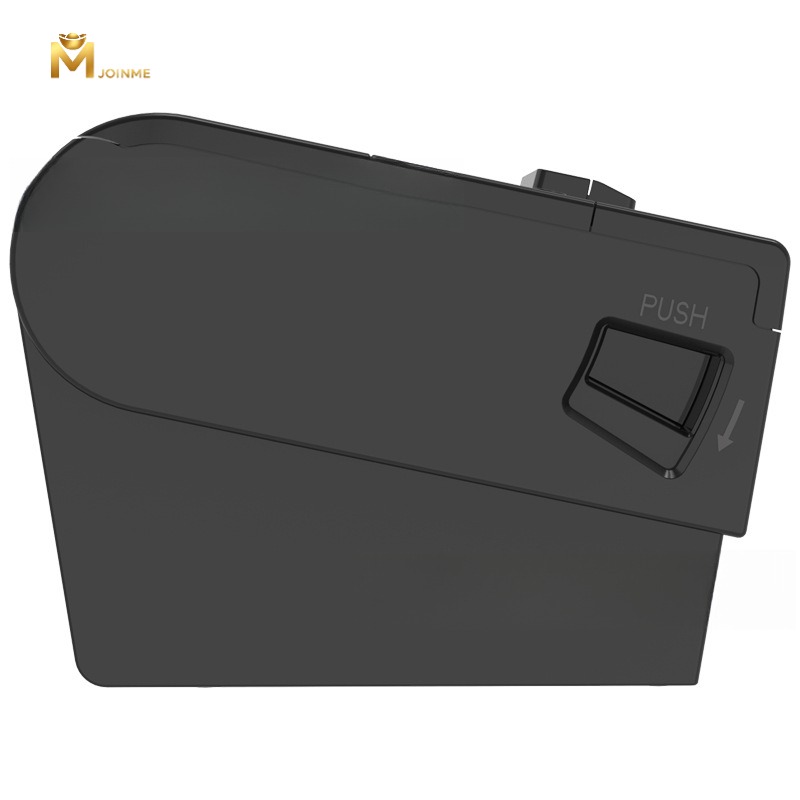

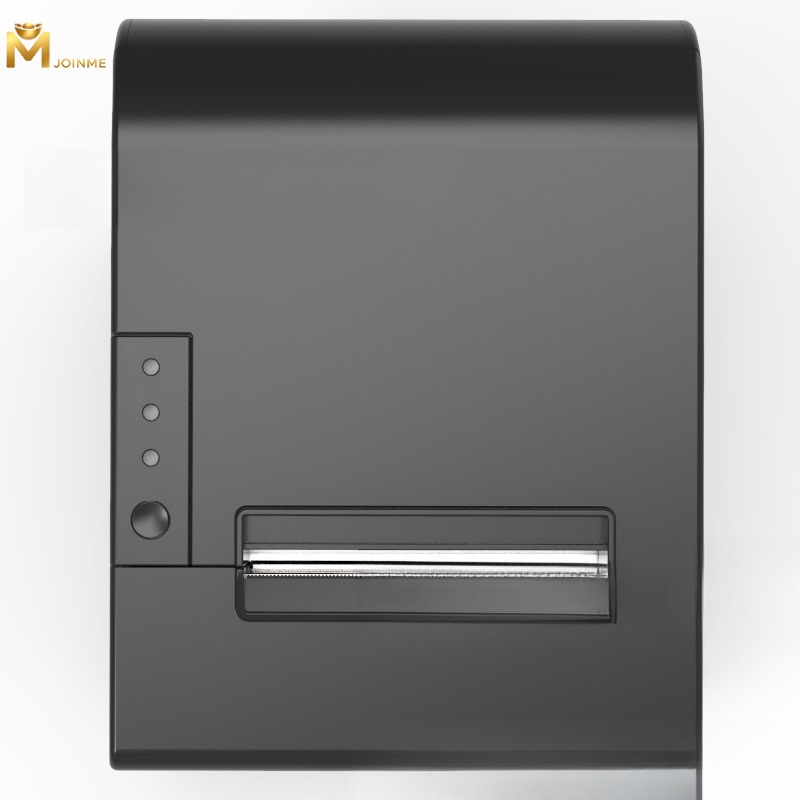

*Product Name: 80mm Desktop Bill/Label Printer
*Instruction set: ESC/POS, TSPL, (optional: ZPL, CPCL)
*Interface: USB/Money Box/(Optional: RS232/Ethernet/WIFI/Bluetooth)
*Memory and FLASH: 600K RAM, 8MB FALSH
*Font support: ASCII: 9x17dots/12 * 24dots/True Type, GBK: 24 * 24
*Language support: Simplified Chinese, Traditional Chinese CODEPAGE,Japan,South Korea, and others
*Supply voltage: 24V-2.5A
*Supporting operating systems: Windows, Android IOS、MAC、OS
*Barcode system: commonly used 1D and 2D barcodes
*Cutting knife support: Supports full or half cutting
*Paper bin size: maximum paper roll diameter 80mm
*Accessories: power adapter, USB cable, instruction manual
*Print parameter:
*Print speed: 200mm/s
*Resolution:203dpi
*Point distance:0.125mm
*Valid print width:72mm(Max 80mm)
*Memory:RAM:64k,Flash:4MB
*Applicable paper:
*Label paper/Continuous thermal paper
*Paper width:80mm
*Paper thickness:0.008mm-0.075mm
*Roll diameter:Max:Φ80mm

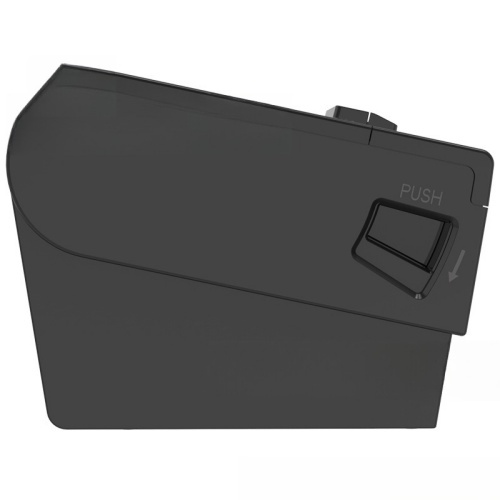

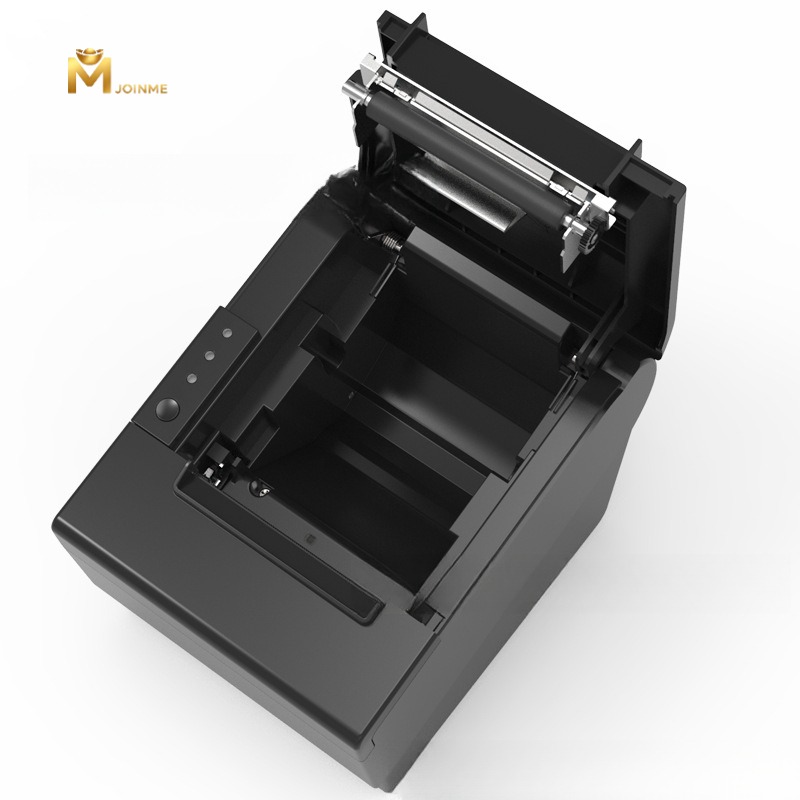

*Paper loading:Simple upper opening cover
*Cutter parameters:
*Suitable for paper thickness:0.048-0.08mm
*Working life:≥500000times
*Push-button:
*Function Buttons:1(FEED)
*Power button:Rocker switch
*Interface&Drive
*Interface:USB/netcable/Wifi/Bluetooth(optional)
*Cash Drawer:RJ11 12V1A
*Command set:ESC-POS&TSPL
*Mqtt&Https Cloud Printing(optional):
*System support:Windows 7/8/10/11 Android Linux
*Barcode&Character set:
*Barcode:1D Code39/Code93/Code128/Ean-8/Ean-13;2D QR
*Character set:
*Chinese GB18030 24*24dots
*ASCII Code page 12*24dots
*Size and Packing:
*Printer Size:145mm*145mm*192mm;NW:1.2KG
*Box size:160mm*190mm*210mm;GW:1.7KG
*Carton size:210mm*430mm*500mm;GW:11.5KG
