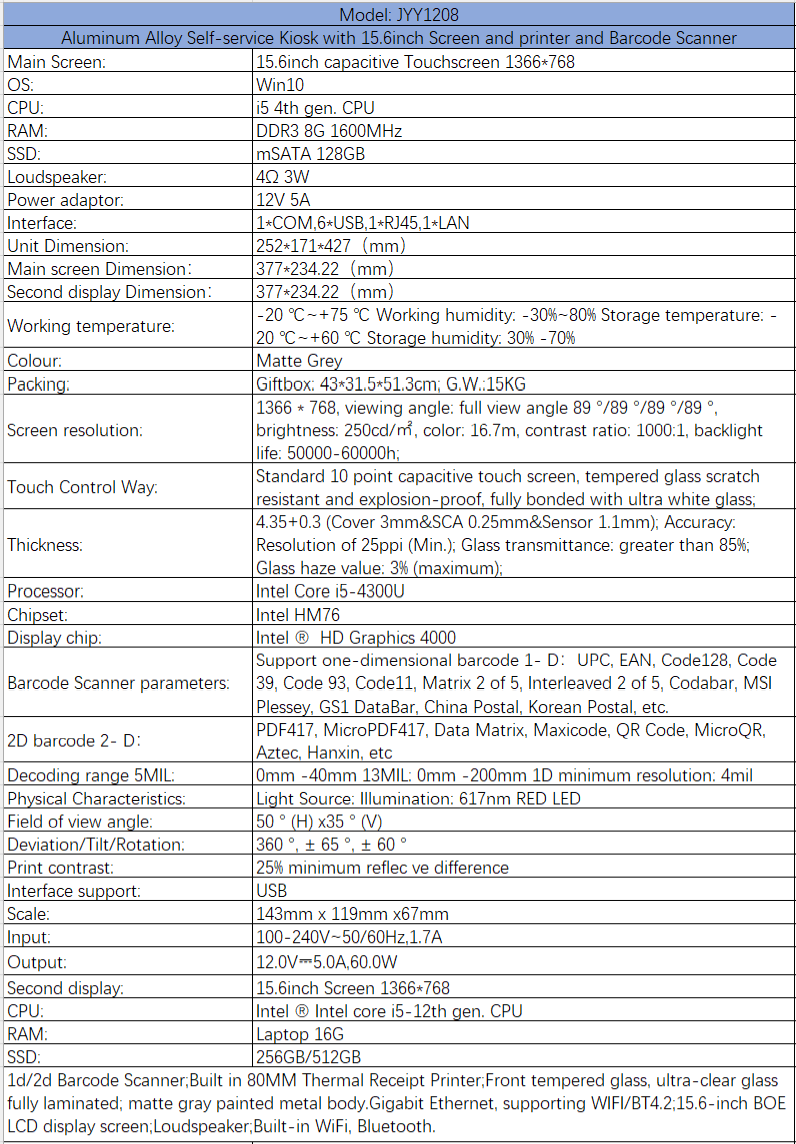

Model: JYY1208
Main Screen: 15.6inch capacitive Touchscreen 1366*768

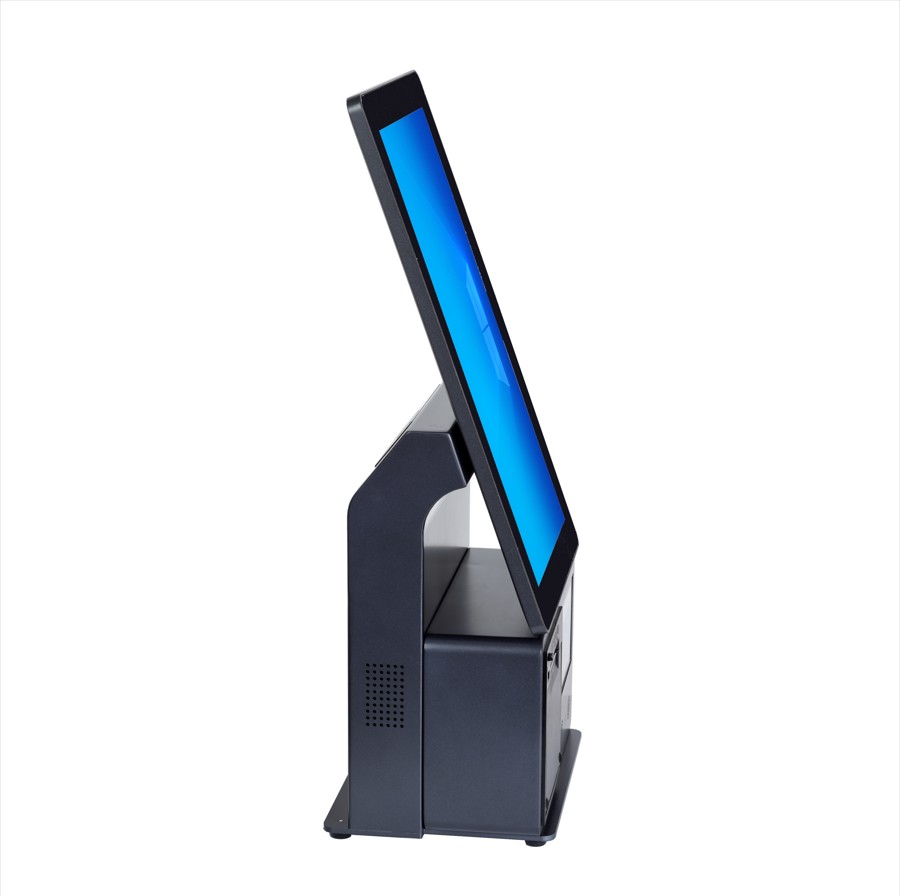

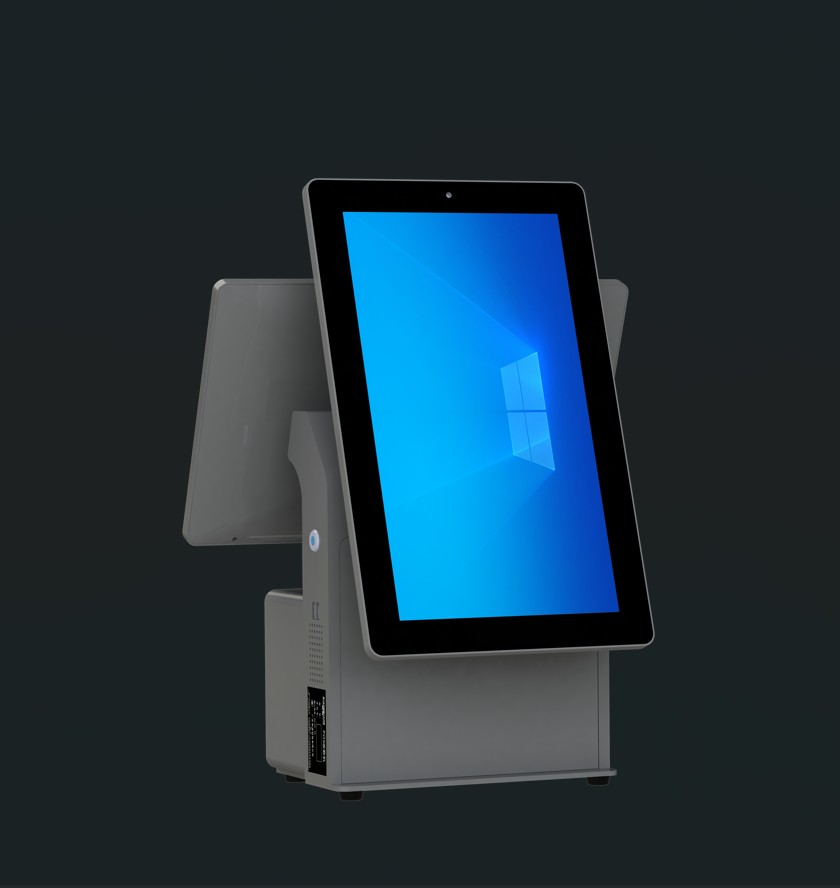

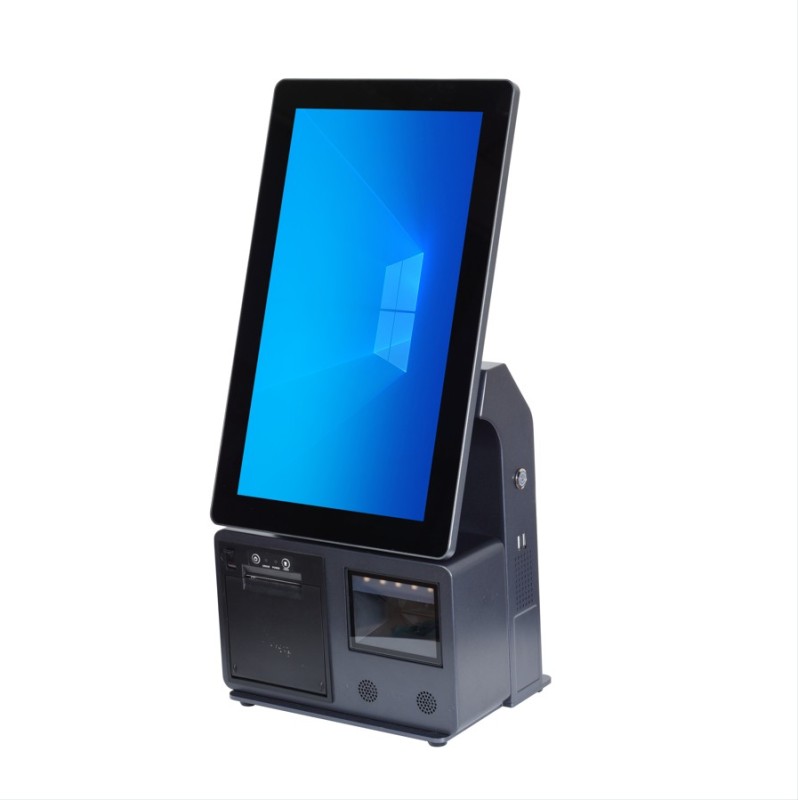

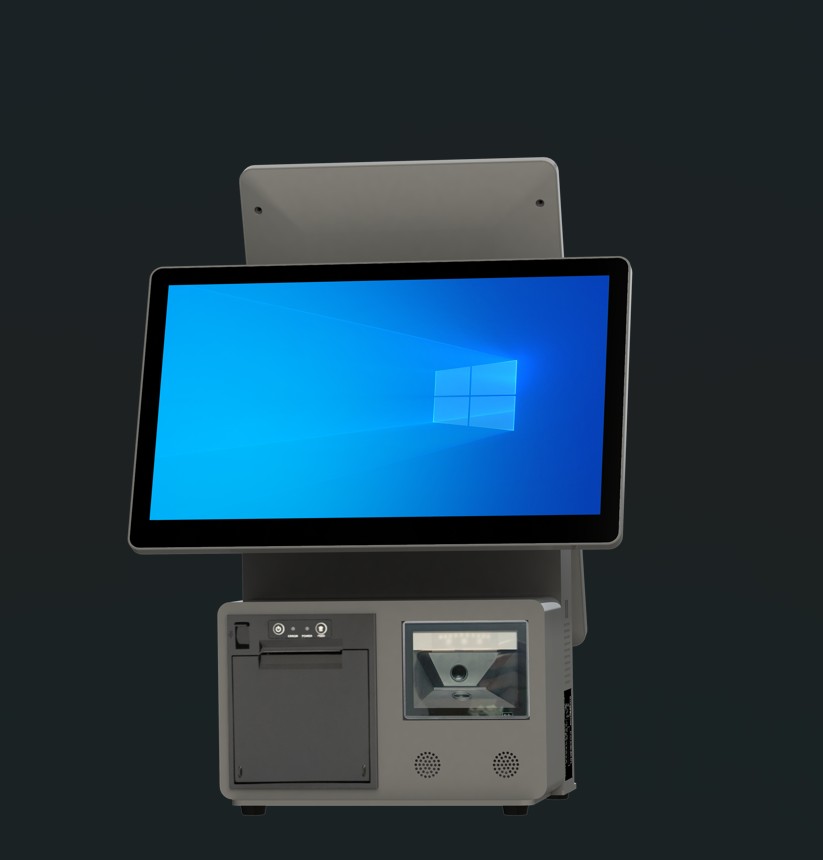

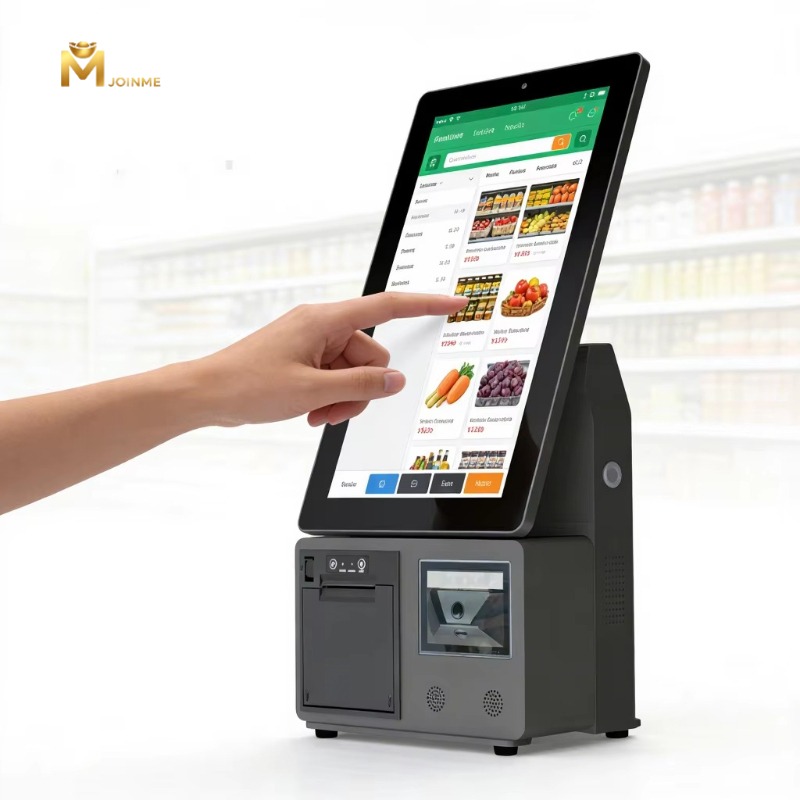

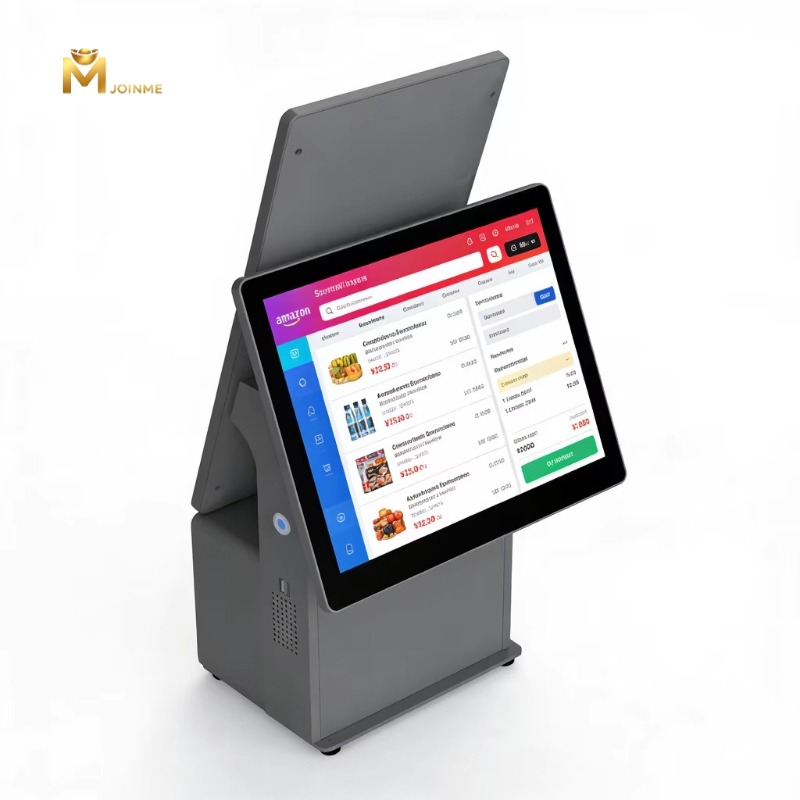

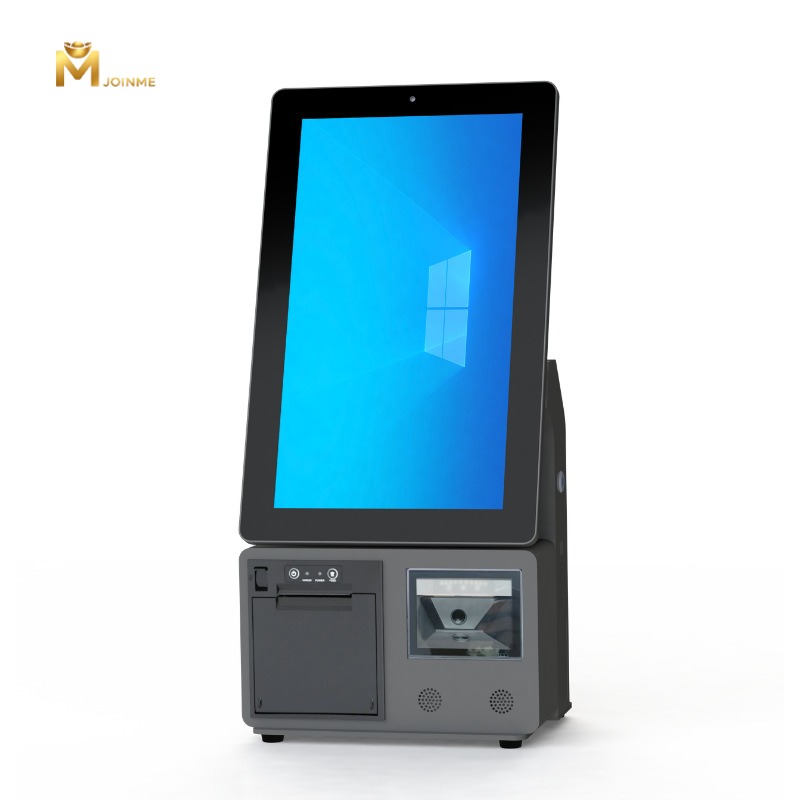

Aluminum Alloy Self-service Kiosk
Features:
OS: Win10
CPU: i5 4th gen. CPU
RAM: DDR3 8G 1600MHz
SSD: mSATA 128GB

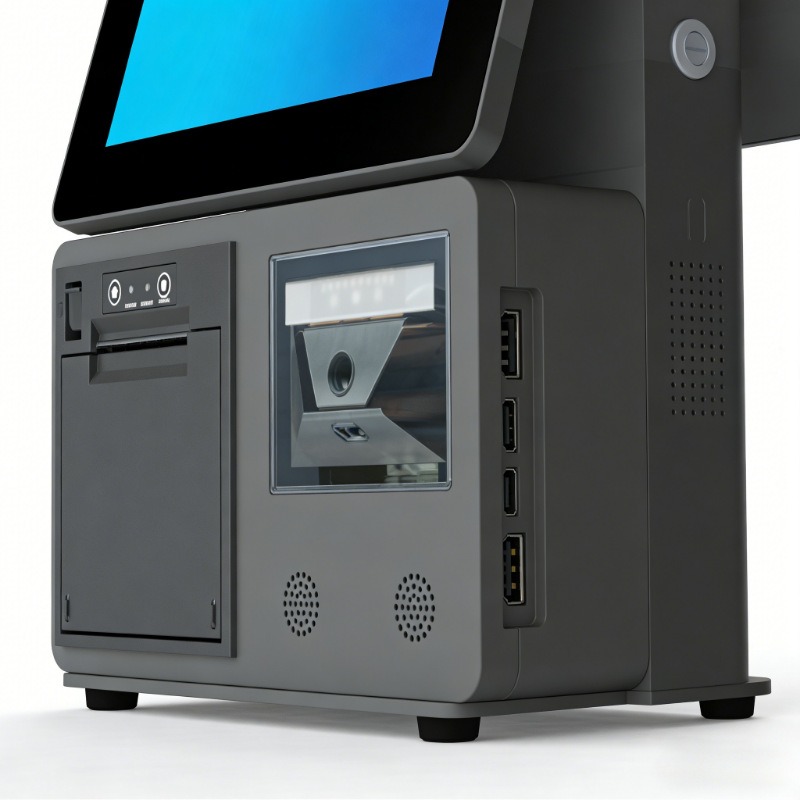

1d/2d Barcode Scanner

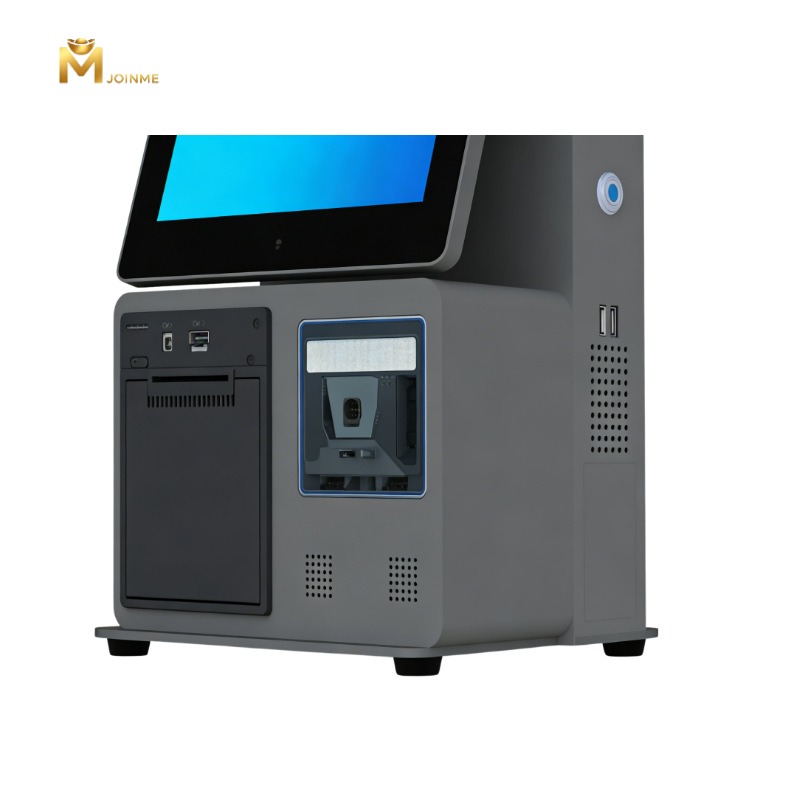

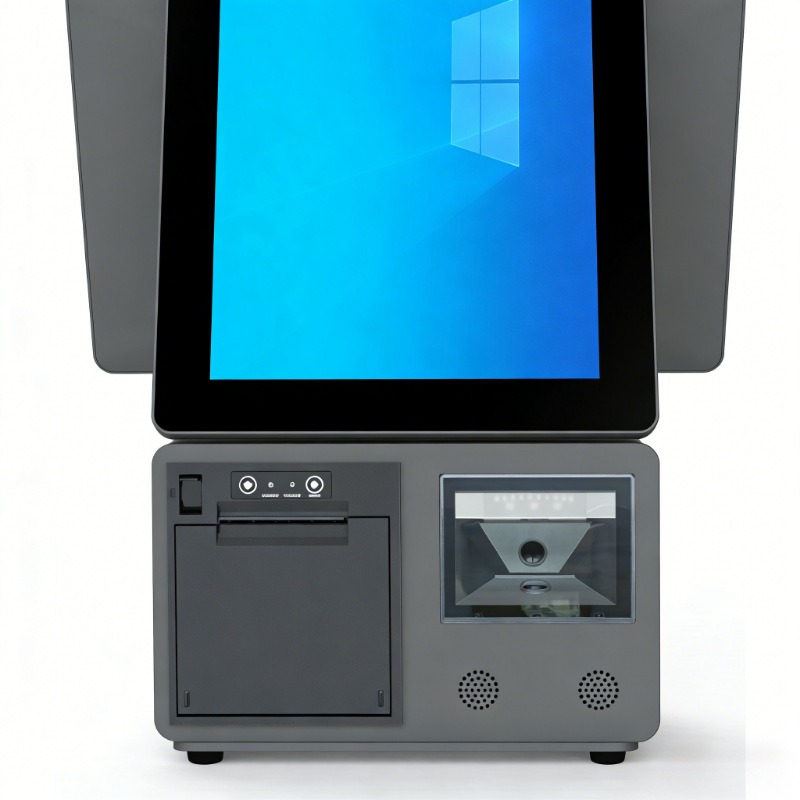

Built in 80MM Thermal Receipt Printer
Loudspeaker: 4Ω 3W
Power adaptor: 12V 5A

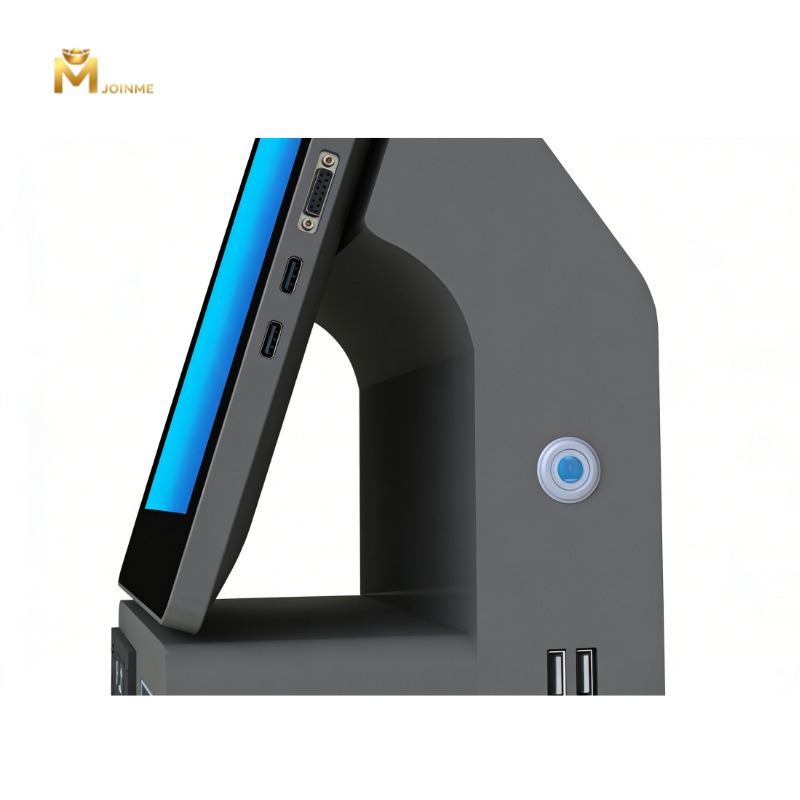

Interface: 1*COM,6*USB,1*RJ45,1*LAN
Unit Dimension: 252*171*427mm,Main screen Dimension:377*234.22(mm),Second display Dimension:377*234.22(mm)
Front tempered glass, ultra-clear glass fully laminated; matte gray painted metal body.
Working temperature: -20 ℃~+75 ℃ Working humidity: -30%~80% Storage temperature: -20 ℃~+60 ℃ Storage humidity: 30% -70%
Gigabit Ethernet, supporting WIFI/BT4.2
Colour: Matte Grey
Packing:
Giftbox: 43*31.5*51.3cm; G.W.:15KG
Screen parameters:
15.6-inch BOE LCD display screen
Screen resolution: 1366 * 768, viewing angle: full view angle 89 °/89 °/89 °/89 °, brightness: 250cd/㎡, color: 16.7m, contrast ratio: 1000:1, backlight life: 50000-60000h;
Touch Control Way:
Standard 10 point capacitive touch screen, tempered glass scratch resistant and explosion-proof, fully bonded with ultra white glass;
Thickness: 4.35+0.3 (Cover 3mm&SCA 0.25mm&Sensor 1.1mm); Accuracy: Resolution of 25ppi (Min.); Glass transmittance: greater than 85%; Glass haze value: 3% (maximum);
Mainboard:
Processor: Intel Core i5-4300U
Chipset: Intel HM76
Display chip: Intel ® HD Graphics 4000
Barcode Scanner parameters:
Support one-dimensional barcode 1- D:UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2D barcode 2- D:PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc
Decoding range 5MIL: 0mm -40mm 13MIL: 0mm -200mm 1D minimum resolution: 4mil
Physical Characteristics: Light Source: Illumination: 617nm RED LED
Field of view angle: 50 ° (H) x35 ° (V)
Deviation/Tilt/Rotation: 360 °, ± 65 °, ± 60 °
Print contrast: 25% minimum reflec ve difference
Interface support: USB
Scale: 143mm x 119mm x67mm
Power adaptor:
Input:100-240V~50/60Hz,1.7A
Output: 12.0V⎓5.0A,60.0W
Options:

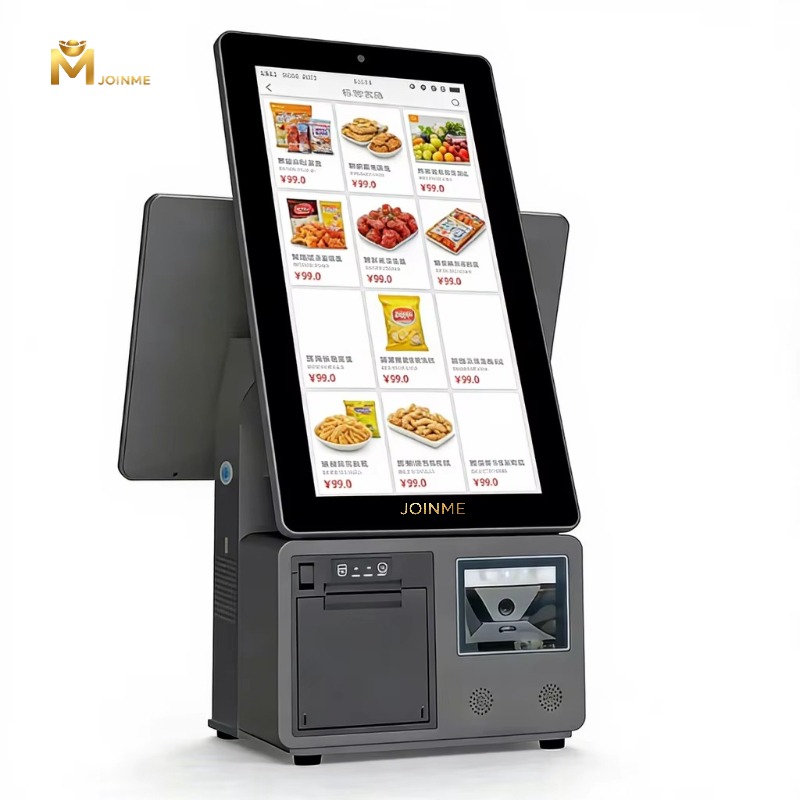

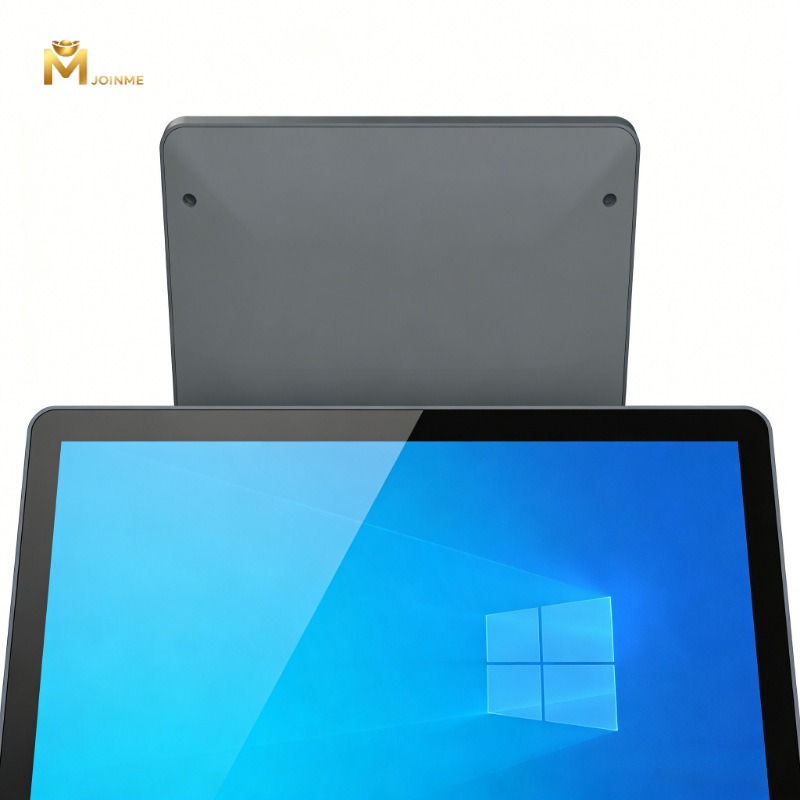

Second display: 15.6inch Screen 1366*768
Loudspeaker
Built-in WiFi, Bluetooth
CPU: Intel ® Intel core i5-12th gen. CPU
RAM: Laptop 16G
SSD: 256GB/512GB
