【Product basic parameter introduction (can be customized according to your configuration requirements, please contact us for details)】
Model: JYY0626
Mobile intelligent collection terminal, based on Android 7 1 operating system, equipped with quad core processors, highly integrated 4G W i F i , Bluetooth and other modules, supporting one-dimensional barcode and two-dimensional code scanning. The device is lightweight and portable, with fast decoding speed, wide recognition compatibility, and simple operation. Widely used for rapid data collection in various fields. Support fast data upload to the server.
Features:

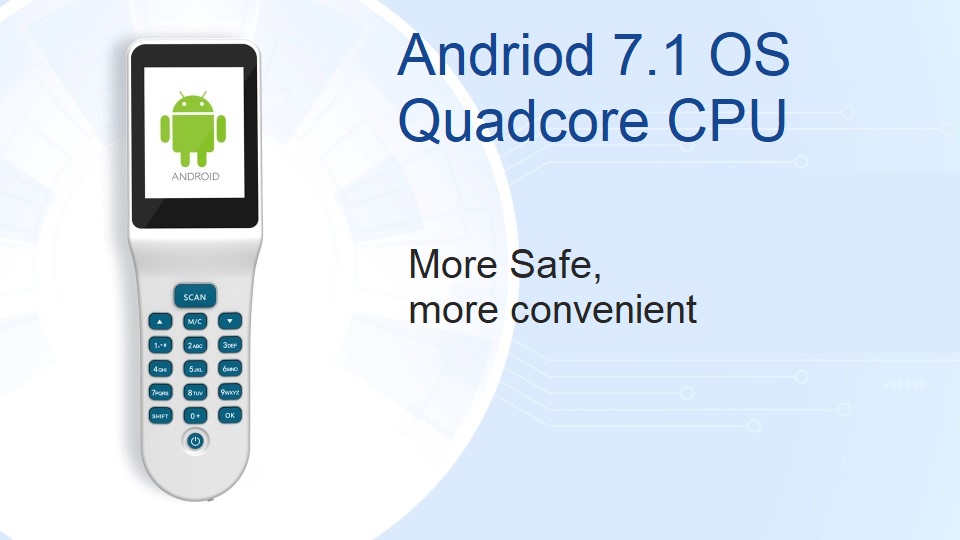

Android7.1
MT6739 Cortex -A53*4 1. 3Ghz CPU
2.4inch touchscreen 240*320
1G RAM
8G SSD
Wifi 2.4GHz/5GHz IEEE 802.11 a/b/g/n
Bluetooth 2. 1 + EDR ，3.0 + HS ，4.0LE
4G all network communication
4G: FDD (B1/3/5/7/8/20/28A/28B) ; TDD (B38/39/40/41(120M)
3G: WCDMA (B1/5/8)
GSM: GSM ( B2/3/5/8)

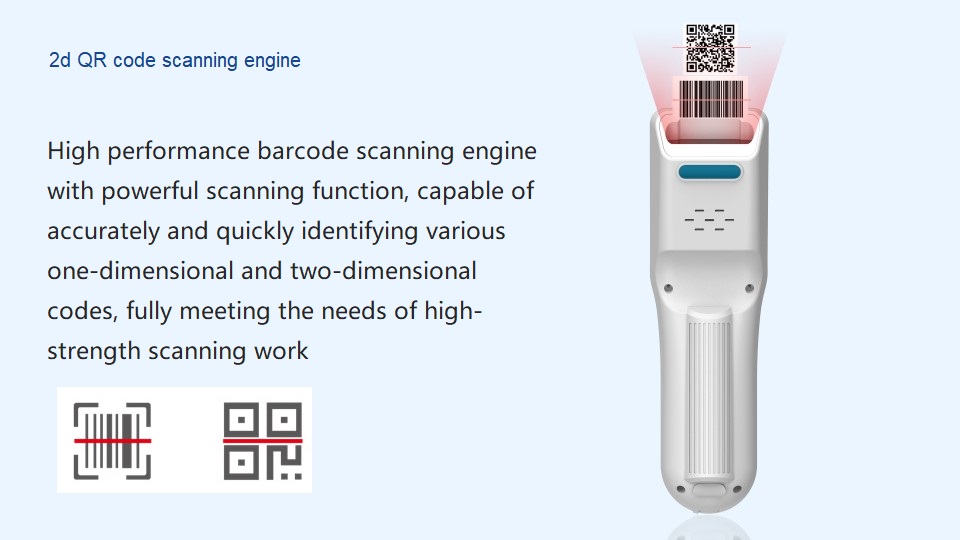

1d 2d barcode scanner
1d scanning: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、 Code11、 MSI- Plessey、Standard 2 of 5、Plessey、 China Post、Code16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS- 14,GS1 Composite)
2d scanning: QR 、PDF417、DataMatrix ( ECC200) 、 Aztec、China code、Maxicode、Micro QR、 Micro PDF417
Interface: Loudspeaker interface; COM; SIM card slot with nano insertion; Type-C
Temperature：- 10 ℃ ~ 50℃
Humidity：0 ~ 95%
3.7V 3400Mah large capacity battery
Power adaptor: DC5V 2A
Support second development
Product size：175mm X 51mm X 35mm
Application:
Scan code inventory /Inbound&Outbound /Purchase,sales and inventory
Simple, easy application, convenient, high efficient. Applicable for all industries such as restaurants, ERP, retail, wholesale, logistics, storage, process inspection, medical and health, etc.
SDK is available for java development.
