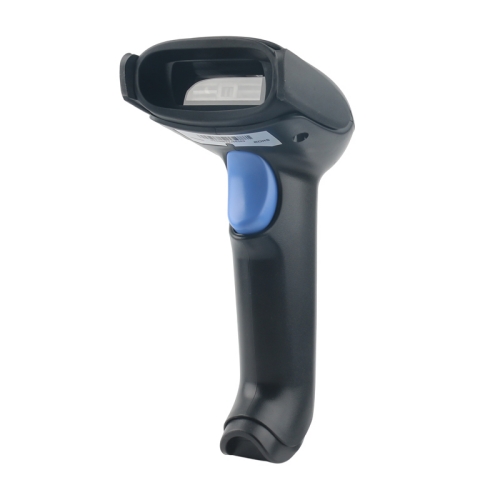

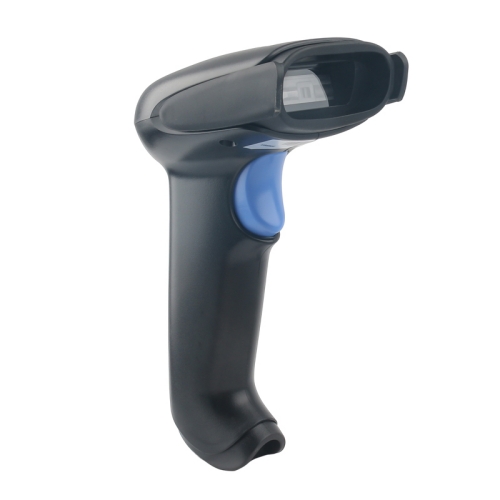

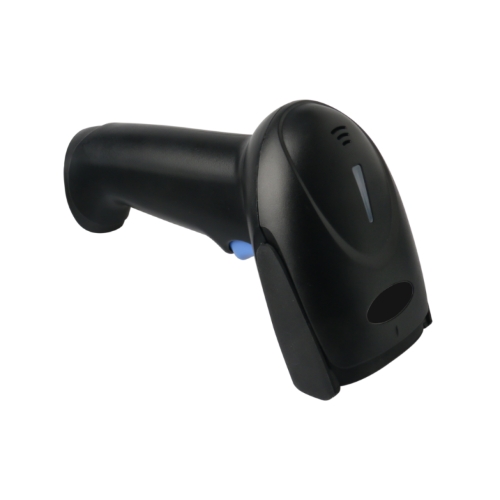

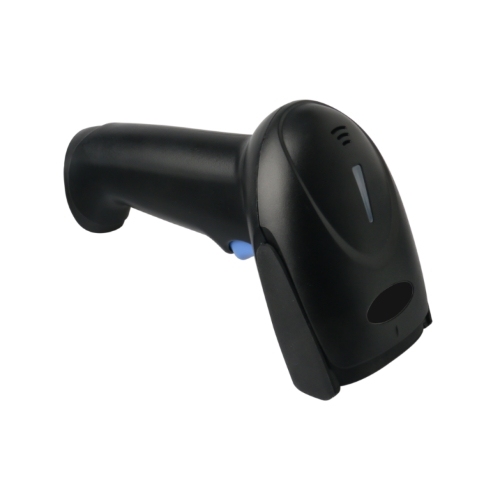

JYY0671 Handheld 1D Wireless Barcode Scanner with Red Light
Specification
Product Features:
It is anti-drop and anti-vibration with highly integrated one-dimensional decoding structure.
It can identify all mainstream one-dimensional barcodes in the market with high-performance MCU.
It can scan barcodes above 4MIL to meet daily scanning requirements.
It can scan barcodes on paper, printing, plastic and screen with CCD image technology.
The outdoor open transmission distance can reach more than 60 meters with Enhanced wireless 2.4G transmission technology.
At the same time support Bluetooth 4.0 technology, reliable outdoor open transmission distance up to 30 meters;
It supports multiple working modes (manual, continuous, flashing, etc.) to meet different scanning requirements.
It supports synchronous mode with large capacity, which can store more than 15,000 product codes.
It supports online upgrade, custom development and secondary development.
This handheld one-dimensional wireless barcode scanner can scan barcodes on different media such as paper, commodities, and screens with excellent scanning performance. The effective distance of outdoor open environment can reach more than 60 meters with enhanced wireless 2.4G transmission technology. It can support both wired and wireless transmission methods. It can be mainly used for mobile payment, commodity barcode scanning, inventory counting, etc.
Appearance

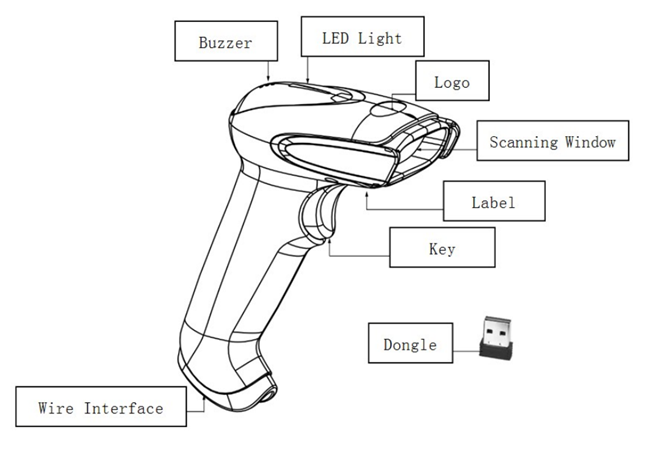

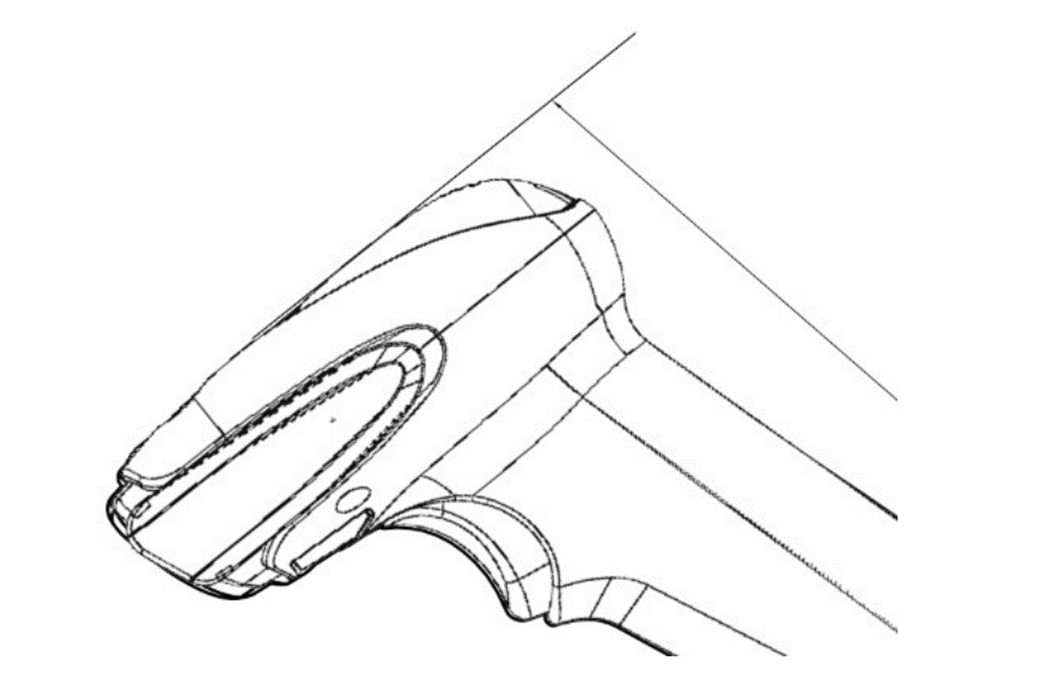

The following picture shows the appearance with LED, buzzer hole and LOGO on the top. There is a scanning window at the front for scanning barcodes. There are wire interface and keys as well.
*Application
Mobile payment, card voucher verification, chain retail, Courier super, manufacturing, storage and logistics, warehouse management, food traceability, power meter reading, asset inventory, medical and health care.
Communication Port

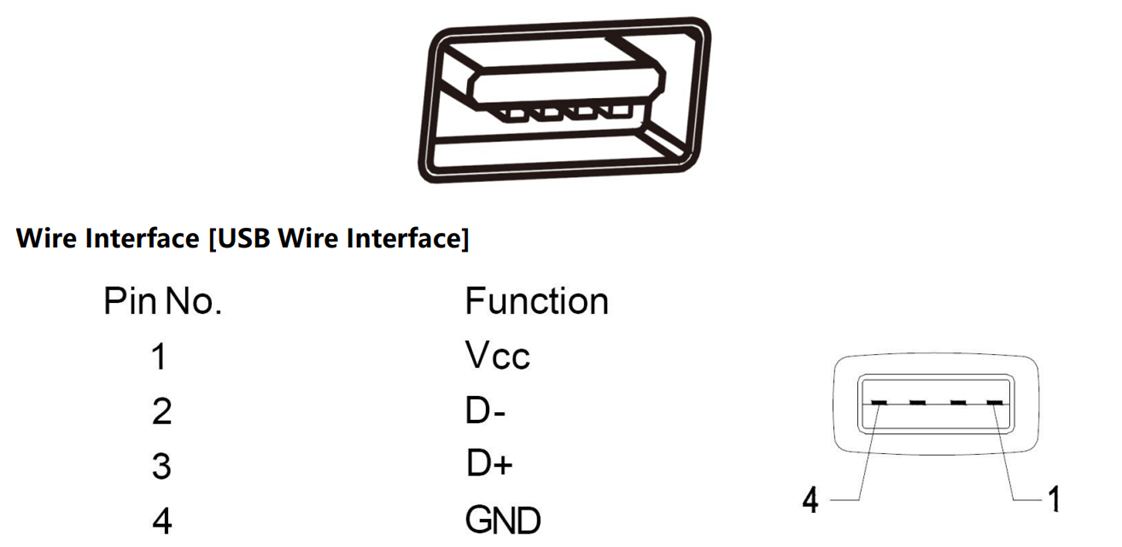

The scanner must be connected to a host for PC, POS, single chip, Android, or other intelligent terminal device with USB interface or dongle. Host USB interface [USB female]

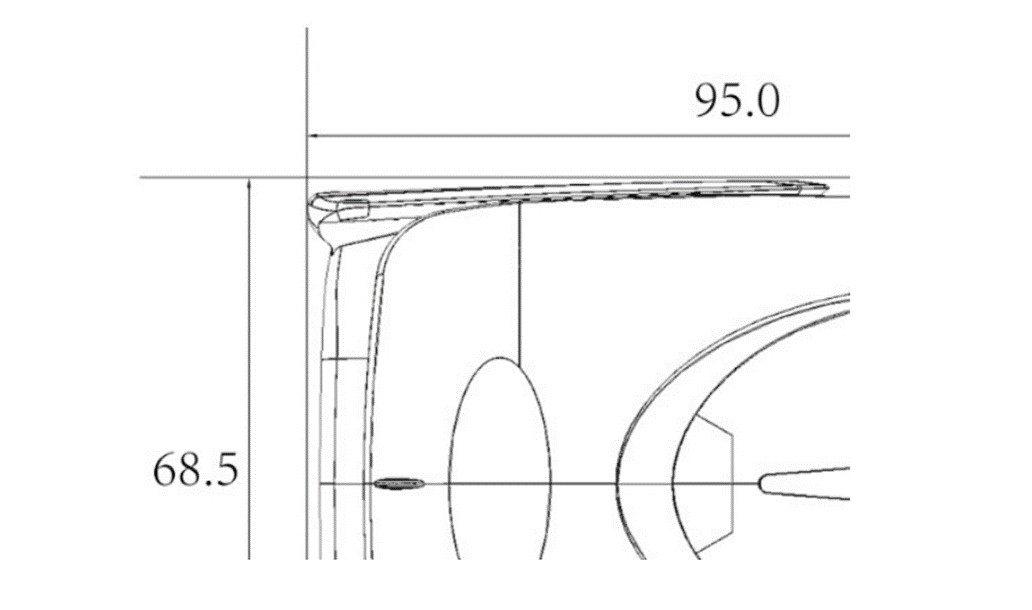

*Structure Dimension
Unit：mm
*Performance
Communication Mode： USB-KBW, Wireless 2.4G,Wireless Bluetooth
Sensor ：Linear CCD Sensor
Pixel： 1500
Reading Precision： ≥3mil/0.076mm（PCS90%,CODE 39）
Depth of Field：30mm~550mm
Decoding Speed： Up to 300 times/sec
Reading Mode： Manual, Continuous, Flashing, Induction
Prompt Mode Buzzer, LED
Test Conditions ：CODE39,10mil/0.25mm,PCS90%
Reading Angle： Roll: ±30°, Pitch: ±60°, Skew: ±60°
Print Contrast ：≥25%
Ambient Illumination ：Dark Environment, Indoor Natural Light
Code System：
UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128， ISBT 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Standard 2 of 5（IATA）， Codabar（NW-7），MSI Plessey，China Post，etc.
*Wireless Parameters
Wireless Communication Mode ：Synchronous mode, storage mode
Communication Mode：Wired USB (USB-KBW, USB-COM), wireless 2.4G, wireless Bluetooth
Wireless Standard：2.4GHZ (ISM frequency band),Compatible with Bluetooth 4.0/3.0/2.1
Transmit Distance：2.4GHz，150meters; Bluetooth 30meter（Open distance）
Storage Capacity：224KB（over 15,000 Product code）
Battery Capacity：1200mAh
Charging Time：About 2.5 hours(5V@1000mA)
Continuous Scan Time：≥18hours
Standby Time：≥4 weeks
Support System：Windows，Mac OS，IOS, Linux，Unix，Android
*Mechanical/Electrical Parameters
Product Weight：160g (Without Wire)
Packed Weight：270g
Appearance Dimension：L151.5mm * W68.5mm * H95mm
Packed Dimension：L195mm * W105mm * H80mm

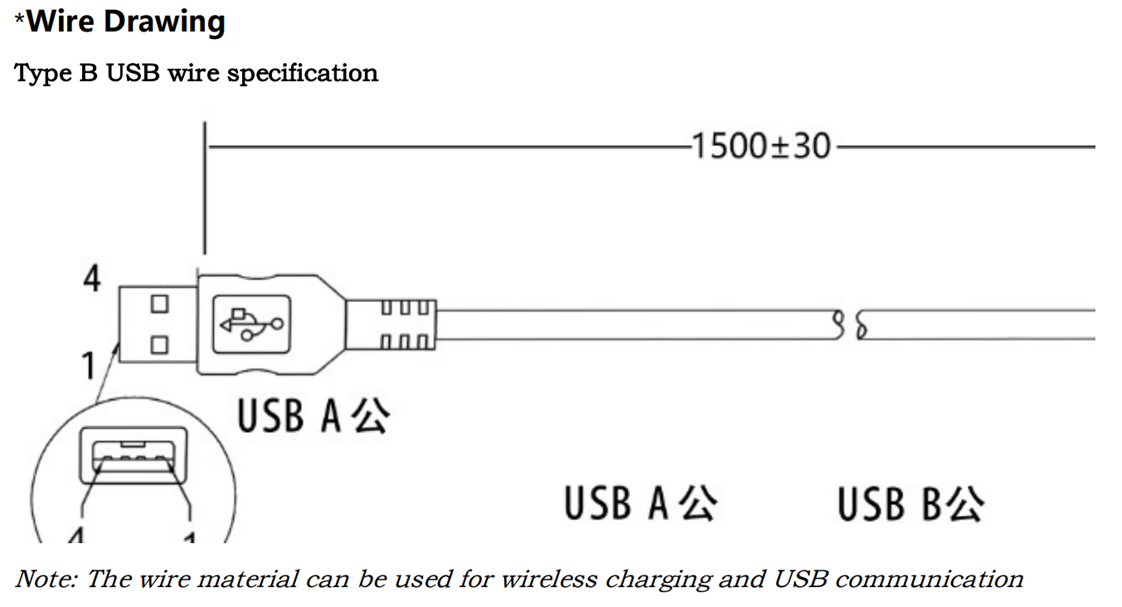

Wire Length：1.5 metres
Interface Type ：USB Type B
Working Voltage：DC 5V/1A
Current：110mA（Average Work）
*Working Environment
Working Temperature：0℃ to 50℃
Storage Temperature：-30℃ to 60℃
Working Humidity：5% to 95%（Non-Condensing）
Transportation Vibration Test：10H@125RPM
*Spare Parts List
Cable ：It is used for connecting Scanner and Host to communicate and charge.
Dongle： It is used for communication.
Simple Operating Guide： It is used for common function settings.
*Depth of Field
Barcode Type Barcode Density Min Max
Code 39 0.076mm(3mil) 50mm 110mm
Code 39 0.127mm(5mil) 35mm 160mm
Code 39 0.25mm(10mil) 35mm 250mm
Code 39 1.0mm(40mil) 120mm 550mm
EAN-13 0.33mm(13mil) 30mm 270mm
Testing Conditions:
Room Temperature 24℃
Ambient Light Illumination 300LUX
PCS = 0.9
